隔膜泵膜片在隔膜泵里的工作原理!

发布时间:2023-04-15

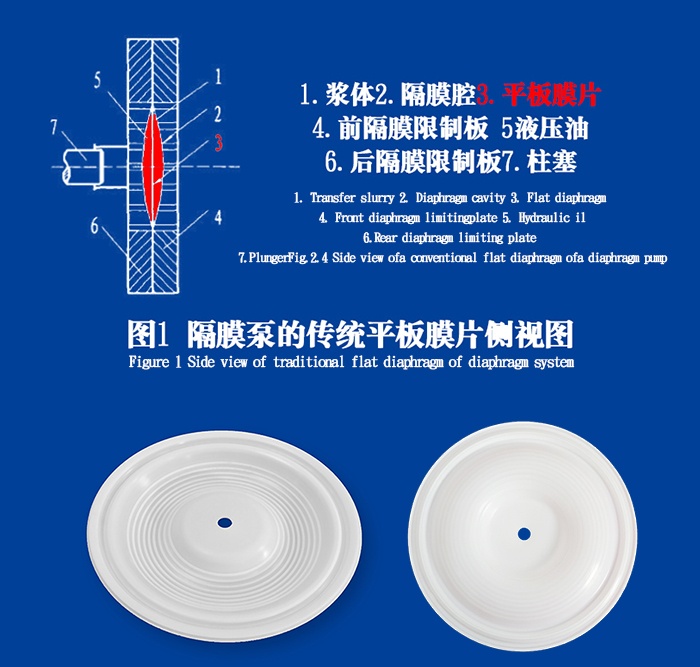

隔膜泵膜片密封件的工作原理说明结构图

隔膜泵是一种常用的离心泵,其工作原理是利用隔膜将泵腔分成两个密闭的腔室,隔膜的一侧与泵的吸液口相连,另一侧与泵的排液口相连。祁晟新材告诉您|隔膜泵在实际运行过程中主要包含两大阶段:排出阶段和吸入阶段。当泵的活塞或柱塞移动时,隔膜也随之移动,使得两个腔室的体积发生变化,从而实现液体的吸入和排出。隔膜泵膜片密封件是起到隔离泵腔和输送介质的作用。



隔膜泵膜片密封件通常由弹性材料制成,具有一定的弹性和耐腐蚀性能,能够承受高压和高温。膜片的设计和材料选择对隔膜泵的性能和寿命有着重要的影响,因此需要根据具体的工况条件进行选择和优化。隔膜泵中的膜片起着将隔膜泵的轴密封、使液压油和输送浆体拆分开来的作用,使输送浆体只与隔膜腔内部件接触而与动力端密封装置没有发生接触,保障了这些元件的运行寿命。同时,膜片还作为隔膜泵的排放膜与隔膜泵的排量密切相关。

隔膜泵的工作原理与其他离心泵不同,它利用隔膜将泵腔分成两个密闭的腔室,从而使得输送介质与泵的动力部分隔离开来,避免了介质的泄漏和污染。此外,隔膜泵能够在干运转状态下工作,不需要额外的润滑液,因此具有较高的安全性和可靠性。隔膜泵广泛应用于化工、制药、食品、造纸等行业,能够输送各种腐蚀性、高粘度、高温度、高固含量的介质,具有很强的适应性和灵活性。



隔膜泵膜片密封件设计和材料选择对隔膜泵的性能和寿命有着重要的影响。隔膜泵膜片密封件通常由橡胶、聚四氟乙烯、聚酯等材料制成,这些材料具有一定的弹性和耐腐蚀性能,能够承受高压和高温。隔膜泵膜片密封件的厚度和形状也会影响泵的性能和寿命,一般而言,膜片厚度越大,耐用性越好,但也会影响泵的性能和效率。因此,在选择隔膜泵膜片时需要综合考虑工作介质的性质、工作条件、泵的性能要求等因素。



隔膜泵膜片密封件使用寿命是直接影响到隔膜泵的运行时间和工作效率的重要因素之一。膜片的磨损会导致泵的排量下降、泵的性能变差甚至泵的损坏,因此需要定期检查和更换膜片。在更换膜片时需要注意膜片的安装和调整,确保膜片的位置和张力符合要求,避免泄漏和振动。



总之,隔膜泵膜片密封件是其关键部件之一,起着隔离泵腔和输送介质、隔离动力部分和输送介质、调节泵的排量和性能等作用。在选择膜片材料和设计时需要综合考虑工作介质的性质、工作条件、泵的性能要求等因素,定期检查和更换膜片能够保证隔膜泵的正常运行和工作效率。





以下英文版:

Diaphragm pumps are a type of centrifugal pump that works by using a diaphragm to divide the pump chamber into two sealed chambers. One side of the diaphragm is connected to the pump's suction port, while the other side is connected to the discharge port. The diaphragm pump mainly includes two stages during operation: the discharge stage and the suction stage. When the piston or plunger of the pump moves, the diaphragm also moves, causing a change in the volume of the two chambers, thus allowing for the suction and discharge of liquids. The diaphragm pump diaphragm sealing element isolates the pump chamber from the conveyed medium.



Diaphragm pump diaphragm sealing elements are usually made of elastic materials with certain elasticity and corrosion resistance, which can withstand high pressure and high temperature. The design and material selection of the diaphragm have an important influence on the performance and life of the diaphragm pump. Therefore, it is necessary to select and optimize according to specific working conditions. The diaphragm in the diaphragm pump serves as a shaft seal and separates the hydraulic oil and conveyed slurry, ensuring that the conveyed slurry only contacts the internal components of the diaphragm chamber and not the sealing device of the power end, thereby ensuring the service life of these components. At the same time, the diaphragm also acts as the discharge diaphragm of the diaphragm pump, which is closely related to the pump's discharge.



The working principle of the diaphragm pump is different from other centrifugal pumps. It uses a diaphragm to divide the pump chamber into two sealed chambers, which isolates the conveyed medium from the power part of the pump, avoiding medium leakage and pollution. In addition, the diaphragm pump can work in a dry-running state without additional lubricants, so it has high safety and reliability. The diaphragm pump is widely used in industries such as chemical, pharmaceutical, food, and papermaking, and can transport various corrosive, high viscosity, high temperature, and high solid content media, exhibiting strong adaptability and flexibility.



The design and material selection of diaphragm pump diaphragm sealing elements have an important influence on the performance and life of the diaphragm pump. Diaphragm pump diaphragm sealing elements are usually made of materials such as rubber, polytetrafluoroethylene, and polyester, which have certain elasticity and corrosion resistance and can withstand high pressure and high temperature. The thickness and shape of the diaphragm also affect the performance and life of the pump. Generally, the thicker the diaphragm, the more durable it is, but it will also affect the pump's performance and efficiency. Therefore, when selecting diaphragm pump diaphragms, it is necessary to consider factors such as the properties of the working medium, working conditions, and pump performance requirements comprehensively.



The service life of the diaphragm pump diaphragm sealing element is one of the important factors directly affecting the operating time and working efficiency of the diaphragm pump. Diaphragm wear can cause a decrease in pump displacement, deterioration of pump performance, and even pump damage, so it is necessary to inspect and replace the diaphragm regularly. When replacing the diaphragm, attention should be paid to the installation and adjustment of the diaphragm to ensure that the diaphragm's position and tension meet the requirements and to avoid leakage and vibration.



In summary, the diaphragm pump diaphragm sealing element is one of its key components, playing a role in isolating the pump chamber and conveyed medium, isolating the power part and conveyed medium, regulating the pump's discharge and performance, etc. When selecting diaphragm materials and designs, it is necessary to consider factors such as the properties of the working medium, working conditions, and pump performance requirements comprehensively. Regular inspection and replacement of the diaphragm can ensure the normal operation and working efficiency of the diaphragm pump.





隔膜泵膜片,隔膜泵,工作原理膜片,密封件
